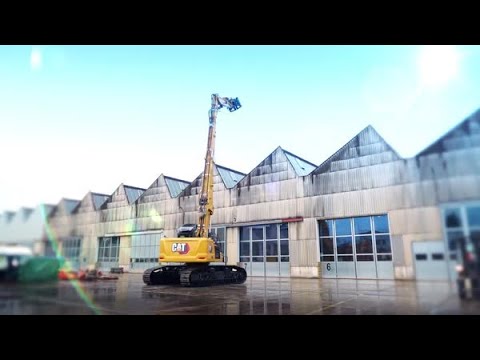

Operating Weight122600lb
Note (1)Hydraulic Variable Gauge undercarriage, 22 m (72'2") UHD front, 600 mm (24") Heavy Duty (HD) triple grouser shoes and 9.0 mt (19,842 lb) counterweight. No work tool.
Machine Weight - Retrofit Configuration118600lb
Note (2)Hydraulic Variable Gauge undercarriage, Retrofit boom, R3.2DB (10'6") stick, General Duty (GD) 2.27 m³ (2.97 yd³) bucket, 600 mm (24") HD triple grouser shoes and 9.0 mt (19,842 lb) counterweight.
UHD in Cradle18700lb
Retrofit Boom in Cradle - R3.9 DB Stick13710lb
Retrofit Boom in Cradle - R3.2 DB Stick13340lb
Retrofit Boom in Cradle - R2.8 DB Stick13120lb
2-Piece Retrofit Boom in Cradle - R3.2 DB Stick17440lb
Maximum Pin Height at Stick Nose72.2ft
Maximum Weight at Stick Nose8160lb
Maximum Working Pin Height at Stick Nose - 1/261ft
Maximum Working Reach at Stick Nose - 1/238.4ft
Maximum Height at Stick Nose in Max Reach Position41.5ft
Maximum Reach at Stick Nose44.4ft
Note (1)22 m (72' 2") UHD Front (Over-the-Front)
Engine ModelCat C9.3B
Net Power - ISO 9249346hp
Engine Power - ISO 14396 (DIN)351hp (metric)
Net Power - ISO 9249 (DIN)352hp (metric)
Engine Power - ISO 14396:2002347hp
Bore5in
Stroke6in
Displacement568in³
Biodiesel CapabilityUp to B20¹
EmissionsMeets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Note (1)Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at the time
Note (2)¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO
Main System - Maximum Flow560 l/min (148 gal/min)
Maximum Pressure - Equipment5076psi
Maximum Pressure - Equipment - Lift Mode5511psi
Maximum Pressure - Travel5076psi
Maximum Pressure - Swing4264psi
Swing Speed4.09r/min
Swing Speed8r/min
Maximum Swing Torque105000ft·lbf
Fuel Tank Capacity159gal (US)
Cooling System11gal (US)
Engine Oil9gal (US)
Swing Drive5gal (US)
Final Drive - Each2gal (US)
Hydraulic System - Including Tank145gal (US)
Hydraulic Tank43gal (US)
DEF Tank21gal (US)
Note (1)22 m (72'2") UHD Front
Shipping Height - Top of Cab11.1ft
Cab Height - With OPG11.8ft
Shipping Length49.9ft
Tail Swing Radius11.6ft
Counterweight Clearance4.6ft
Ground Clearance1.7ft
Track Length18.9ft
Track Length to Center of Rollers15.6ft
Working Gauge - Extended Position11.1ft
Shipping Gauge - Retracted Position7.8ft
Transport Width10.7ft
Machine Length - without Front, with Counterweight23.3ft
Machine Length - without Front and Counterweight22.9ft
Track Width - Extended13.1ft
Track Width - Retracted9.8ft
Note (2)600 mm (24") Track Shoes
Note 1Straight - R3.2 m (10' 6") Stick (Over-the-Front) - HVG Undercarriage
BucketGD 2.27 m³ (2.97 yd³)
Maximum Pin Height at Stick Nose39.8ft
Maximum Weight at Stick Nose9260lb
Maximum Height at Stick Nose in Max Reach Position7.6ft
Maximum Reach at Stick Nose34.8ft
Maximum Digging Depth16.1ft
Maximum Reach - Ground Level39.9ft
Maximum Loading Height34ft
Minimum Loading Height15.7ft
Bucket Digging Force - ISO47160lbf
Stick Digging Force - ISO37300lbf
Note 1Bent - R3.2DB (10'6") Stick - HVG Undercarriage
BucketGD 2.27 m³ (2.97 yd³)
Maximum Digging Depth21.4ft
Maximum Reach - Ground Level36.7ft
Maximum Cutting Height35.4ft
Maximum Loading Height24.9ft
Minimum Loading Height10.4ft
Bucket Digging Force - ISO47160lbf
Stick Digging Force - ISO37300lbf
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg (2.2 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons).
