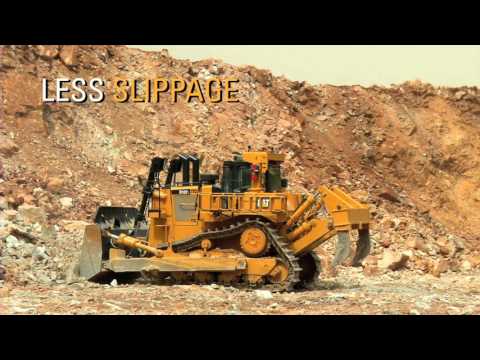

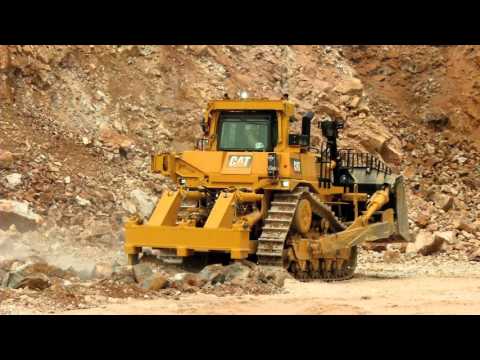

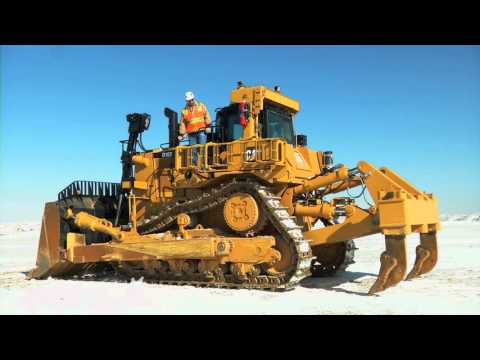

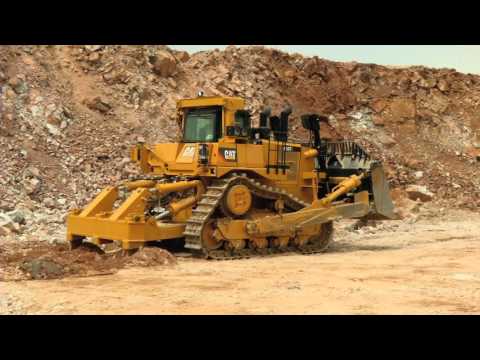

D10T2 Dozer (US EPA Tier 4 Final)

Engine ModelCat® C27

Flywheel Power600HP

Bore5.4in

Stroke6in

Displacement1648in³

Engine Power - Gross SAE J1995* (FWD/REV)471/571 kW (632/766 HP)

Engine Power - ISO 14396 (FWD/REV)462/562 kW (620/754 HP)

Engine Power - Net SAE J1349/ISO 9249 (FWD/REV)447/538 kW (600/722 HP)

Engine Power - Net SAE J1349/ISO 9249 DIN (FWD/REV)608/732 mhp

Net SAE J1349/ISO 9249 (FWD/REV)447/538 kW (600/722 HP)

EmissionsU.S. EPA Tier 4 Final

Net SAE J1349/ISO 9249 DIN (FWD/REV)608/732 mhp

Note (1)*Excludes all fan losses.

Note (2)Engine ratings apply at 1,800 rpm.

Note (3)Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.

Note (4)No derating (in FWD gears) required up to 4572 m (15,000 ft) altitude.

Operating Weight154700lb

Shipping Weight109775lb

Note (2)D10T2 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm/24 in ES shoes.

Note (1)D10T2 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm/24 in ES shoes, and operator.

Shoe TypeExtreme Service (ES)

Width - Shoe24in

Shoes/Side44

Grouser Height3.7in

Pitch10.25in

Ground Clearance28.5in

Track Gauge100.4in

Length - Track on Ground152.8in

Ground Contact Area7347in²

Track Rollers/Side8

Number of Carrier Rollers1 per side (optional)

1 Forward2.5mile/h

2 Forward4.5mile/h

3 Forward7.9mile/h

1 Reverse3.2mile/h

2 Reverse5.6mile/h

3 Reverse9.8mile/h

Type3-speed planetary powershift

Transmission Clutch Diameter17.1in

Fuel Tank314.4gal (US)

Cooling System47.6gal (US)

Engine Crankcase*18gal (US)

Power Train60.8gal (US)

Final Drive - Each6.1gal (US)

Roller Frames - Each16.9gal (US)

Pivot Shaft Compartment8.7gal (US)

Hydraulic Tank34.6gal (US)

Note*With oil filters.

Pump TypeVariable displacement piston

Bulldozer Relief Valve Setting4061psi

Tilt Cylinder Relief Valve Setting2944psi

Ripper - Lift - Relief Valve Setting4061psi

Ripper - Pitch - Relief Valve Setting4061psi

Combined Pump Output - Implement100.4gal/min

Note (1)Pump output measured at 1,800 rpm engine speed.

Note (2)Electro-hydraulic pilot valves assist operations of ripper and dozer controls.

Note (3)Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.

Height - ROPS/Canopy*173.5in

Length - Basic Tractor - With Drawbar220.4in

Width - Over Trunnions147.1in

Length - With U-Blade305.1in

Length - With Multi-Shank Ripper285.1in

Drawbar Height (Center of Clevis)34in

Overall Length - Basic Tractor209.6in

Length - With Single-Shank Ripper278.8in

Length - With SU-Blade292in

Height - Top of Stack*171.5in

Track Gauge100.4in

Length - Track on Ground152.8in

Height - FOPS Cab*161.3in

Overall Length - SU-Blade/SS Ripper360.6in

Width - Without Trunnions - 610 mm/24 in ES129.6in

Ground Clearance*28.5in

Spring Applied Multiple-disc Brake15.4in

Hydraulically Applied Multiple-disc Steering Clutch15.4in

FOPSFalling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.

Sound (2)The operator equivalent sound pressure level (ISO 6396) is 77 dB(A)/74 dB(A) (sound suppressed).

Sound (1)The exterior sound pressure level for the standard machine (ISO 6395) is 115 dB(A)/111 dB(A) (sound suppressed).

ROPSRollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.

Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (3.0 tons).

Oscillation13.8in

Standard

Alternator, 150 amp

Back up alarm

Batteries, 12-volt (2), 200 amp-hour

Converter, 12-volt, 10 amp and 20 amp

Diagnostic connector

Horn, forward warning

Light, engine compartment

Lighting system, 8 Halogen

Starting receptacle

Standard

Air conditioner and heater

Armrest, adjustable

Cab, FOPS

Deactivation switch, hydraulic controls

Decelerator, pedal

Finger Tip Control (FTC) steering

Governor switch, electronic

Hydraulic system, electronically controlled

Information display – Multi-color

Mirror, rearview

Radio ready, entertainment

ROPS rollbar

Seat belt, retractable 76 mm (3 in)

Seat, cloth, air suspension

Wipers, intermittent, low and high speeds

Work monitor

Standard

Aluminum bar-plate radiator, 6 fpi

Aftercooler, air-to-air

Air filters, dual with precleaner

Cat C27

Coolant, extended life

Shift management:
– Advanced Productivity Electronic Control System (APECS)
– Enhanced AutoShift (EAS)

Engine Idler Shutdown Timer

Ether starting aid, automatic

Hydraulic demand fan

Fast fuel system

Four planet, double-reduction planetary final drives

Fuel priming pump, electric

High speed oil change system

Mufflers, dual

Parking brake, electronic

Prescreener

Separator, water/fuel

Thermal shields, exhaust

Torque divider

Transmission, powershift:
– (3F/3R speeds)

Optional

Coolant, arctic

Engine prelube

Final drives:
– Clamshell guard
– Cold weather
– Guarded

Lubrication, arctic

Copper Grommetted Tube Radiator

Reversible cooling fan

Remote high speed oil change system:
– Ripper
– Counterweight

Standard

Anchorage points

Fender guard rails

Heavy duty steps and handles

Operator Not Present Monitoring System

Seat belt warning system

Slope and side-slope monitor

Optional

Access arrangement

Fire suppression ready

Fire suppression installation

Fuel tank, platform ready

Lights:
– Halogen, twelve
– HID
– LED
– LED, high intensity

Powered access ladder

Rear access platform

Standard

610 mm (24 in) Extreme Service track shoe

Equalizer bar end pin grease fittings, remote

Rollers and idlers, lifetime lubricated

Sprocket rim segments, replaceable

Suspension-type undercarriage, eight-roller tubular track roller frame (carrier roller ready)

Three bolt idler caps

Track adjusters, hydraulic

Track guides

Two-piece master links

Optional

Carrier rollers

Carrier rollers, cold weather

Tracks, PPR, sealed and lubricated:
– 610 mm (24 in) Extreme Service Trapezoidal Hole
– 610 mm (24 in) Super Extreme Service
– 610 mm (24 in) Extreme Service Scallop Resistant
– 610 mm (24 in) Super Extreme Service Scallop Resistant
– 610 mm (24 in) Super Extreme Service Scallop Resistant Round Hole
– 710 mm (28 in) Extreme Service
– 710 mm (28 in) Super Extreme Service
– 710 mm (28 in) Extreme Service Trapezoidal Hole
– 710 mm (28 in) Extreme Service Scallop Resistant
– 710 mm (28 in) Super Extreme Service Scallop Resistant
– 710 mm (28 in) Super Extreme Service Scallop Resistant Round Hole
– 760 mm (30 in) Extreme Service Clipped
– 760 mm (30 in) Super Extreme Service Clipped
– 786 mm (31 in) Extreme Service
– 786 mm (31 in) Extreme Service Trapezoidal Hole
– 786 mm (31 in) Extreme Service Scallop Resistant ARM

Undercarriage arrangements:
– Abrasion resistant
– Cold abrasion
– Cold weather
– Guarded
– Sound

Standard

Auto-blade assist – Dual tilt required

Bottom guard

CD ROM parts book

Ecology drains

Engine enclosure

Fluid sampling ports

Grade control ready

Ground level service center

Hydraulic system, electronically controlled load sensing

Mounting, lift cylinders

Ripper hydraulics

Vandalism, protection (8 caplocks)

VIMS 3G

Product Link (Satellite)

Optional

10SU Abrasion resistant blade

10SU Abrasion resistant blade, black

10SU Push plate

10U No wear plate

10U Abrasion resistant blade

10U Abrasion resistant blade, black

Optional

Bottom guards, cushion dozer

Bottom guards, front counterweight

Bottom guards, partial

Bottom guards, sealed

Guard, fan debris

Guard, undercarriage idlers

Mounting GP, rear screen

Screens, grill door

Optional

Air conditioner:
– Fender
– ROPS

Cab glass:
– 276 kPa (40 psi)
– Dual pane impact resistance glass

Operator arrangement:
– 5th Percentile Arrangement
– Quick opening floor plates

Powered precleaner

Seat, air suspension:
– Cloth, heated and ventilated
– Vinyl

Visibility arrangement:
– Single camera
– Dual camera
– Mirrors

Window shades

Optional

Counterweight:
– 3 slab with hitch
– 4 slab with hitch

CapSure hammerless installation and positive retention system:
– Single shank
– Multi shank
– Single shank deep

Drawbar, rear

Multi shank ripper:
– Deep shank
– Standard shank

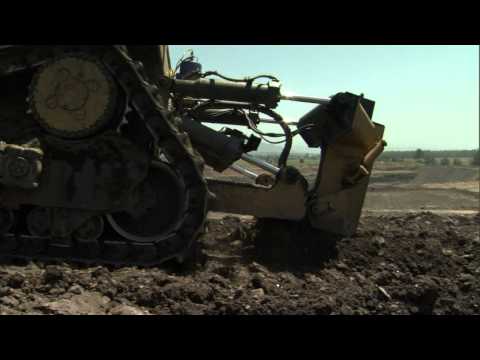

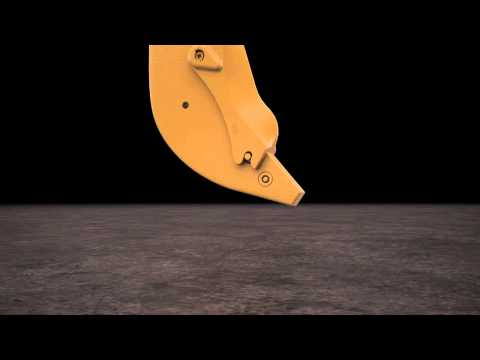

Single shank ripper:
– Push block with pin puller
– Standard shank
– Standard shank with pin puller

Ripper mounting:
– Standard
– Wide track

Optional

High debris

Sound

Stockpile

Optional

Machine control, performance:
– AutoCarry
– Automatic ripper control

Command for Dozing

Terrain for Grading:
– with blade control

Optional

Automatic lubrication system

Fire suppression ready

Fire suppression installation

Fuel lines, heater

Grease points, grouped

Heater, engine coolant

Hydraulic, dual tilt

Hydraulic, dual tilt, cushion dozer

Hydraulic, single tilt, cushion dozer

Main frame, cushion dozer

Starting cold weather
