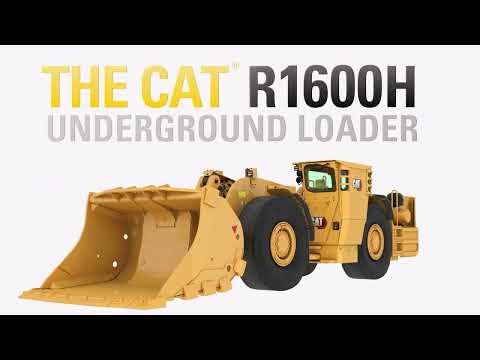

R1600H Underground Mining Loader

The Cat® R1600H Underground Loader has a powertrain tuned specifically for speed on grade — mastering poor floor conditions and delivering maximum production in all speed ranges. It has the necessary strength and durability to work in tough conditions, but its precise controls and efficient operation set it apart. It offers superior stability, exceptional digging and lifting, and a variety of efficiency-boosting functions, plus a transmission that delivers constant power. The R1600H also offers a number of safety features, from FOPS/ROPS certified cab and safety glass to the ability to incorporate autonomous operation. Thanks to the extreme durability designed into the structure, the
loader can be productive through up to four rebuilds. The R1600H is an ideal match for the Cat AD30 truck.

Request a Quote

Engine ModelCat® C11

Engine Power - Tier 3 Engine - ISO 14396:2002271hp

Engine Power - VR Engine - ISO 14396:2002271hp

Bore5.1in

Stroke5.5in

Displacement680.4in³

Note (1)Power ratings apply at a rated speed of 1,800 rpm when tested under the reference conditions for the specified standard.

Note (2)All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specificat

Note (3)No engine derating required up to 3048 m (10,000 ft) for Tier 3 Engine and 1828 m (6,000 ft) for VR Engine.

Note (4)Optional Ventilation Reduction package available.

Note (5)Optional engine with emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA is also available.

Nominal Payload Capacity22487lb

Gross Machine Mass97453lb

Static Tipping Load - Straight Ahead - Lift Arms Horizontal57110lb

Static Tipping Load - Full Turn - Lift Arms Horizontal46067lb

Breakout Force - Tilt (ISO)39524lb

Breakout Force - Lift (ISO)42333lb

Operating Mass*66469lb

Operating Mass* - Front Axle28404lb

Operating Mass* - Rear Axle38065lb

Operating Mass + Rated Payload*88956lb

Operating Mass + Rated Payload* - Front Axle62011lb

Operating Mass + Rated Payload* - Rear Axle26944lb

Note*Calculated weights.

Forward - 12.8mile/h

Forward - 25.6mile/h

Forward - 310.4mile/h

Forward - 417.1mile/h

Reverse - 13.1mile/h

Reverse - 26.8mile/h

Reverse - 311.8mile/h

Reverse - 418.2mile/h

Raise7.6s

Dump1.6s

Lower, Empty, Float Down2s

Total Cycle Time11.2s

Bucket Capacities4.2-5.9 m³ (5.5-7.7 yd³)

Dump Bucket - 15.5yd³

Dump Bucket - 2 - Standard Bucket6.3yd³

Dump Bucket - 37.3yd³

Dump Bucket - 47.7yd³

Ejector Bucket6.3yd³

Bolt Together Bucket6.9yd³

Outside Clearance Radius*261.3in

Inner Clearance Radius*129.6in

Axle Oscillation10°

Articulation Angle42.5°

Note*Clearance dimensions are for reference only.

Tire Size18 × R25

Engine Crankcase - With Filter8.98gal (US)

Transmission12.4gal (US)

Hydraulic Tank33gal (US)

Cooling System16.1gal (US)

Front Differential and Final Drives21.1gal (US)

Rear Differential and Final Drives21.1gal (US)

Fuel Tank105.7gal (US)

Secondary Fuel Tank - If Equipped87.2gal (US)

StandardsROPS/FOPS Certified Cab

Standard

Alarm, reversing

Alternator, 95 amp

Battery disconnect switch, ground level

Batteries, low maintenance

Diagnostic connector

Engine shutdown switch

Lighting:

  • – External, front, rear, halogen
  • – Stop, single, halogen

Receptacle group, auxiliary start

Starter, electric, 24-volt

Starting and charging system

Optional

Lighting:

  • – Work lights, LED

Standard

Tires must be selected from the Mandatory Attachments section

  • – Tire, 18 × R25 VSMS L5S Bridgestone

Optional

Rims:

  • – Spare, tubeless
  • – Rim identification numbering

Standard

Automatic Brake Application (ABA)

Cab, ROPS and/or FOPS certified

Color Multi Purpose Display (CMPD):

  • – Front and rear brake gauges
  • – Transmission pressure
  • – System diagnostics
  • – Residual brake warning

Horns, electric

Instrumentation/gauges:

  • – Speedometer/tachometer
  • – Fuel level
  • – Hydraulic oil temperature
  • – Engine coolant temperature
  • – Transmission oil temperature

Operator Presence System

Pilot hydraulic implement controls (single joystick)

Suspension operator seat with retractable seat belt:

  • – Seat, suspension, vinyl

Secondary steering system

STIC steering

Throttle:

  • – Pedal, throttle

Optional

Operators station ROPS/FOPS enclosed:

  • – Air conditioning
  • – Cab pressurizer and filter
  • – Dome light
  • – Door strut
  • – Heater
  • – Radio ready compartment for radio and speakers
  • – Wiper control, intermittent

Duct, air, flow diverter

Idle timer (enclosed cab or open cab)

Suspension operator seat with retractable seat belt:

  • – Seat, suspension, TEE, vinyl
  • – Seat, suspension, air, vinyl
  • – Seat, suspension, TEE, air
  • – Seat cover

Throttle:

  • – Pedal, throttle

Standard

Brake axle cooling

Cap, radiator, manual release

Catalytic exhaust purifier/muffler

Bucket dump (4.8 m3/6.3 yd3)

Decals, international picto graphics

Draw bar attachment, bolt-on

Fast Fill System:

  • – Coolant
  • – Engine oil
  • – Fuel
  • – Hydraulic oil
  • – Transmission oil

Fenders, front, rear

Firewall

Guards, engine and transmission

Handholds

Lubrication system:

  • – Semi central

Protection bars, rear frame

Radiator grill, swing out

Service oil sample

Valve, drain, transmission oil filter

Windows:

  • – Window, single pane

Standard

Brakes, full hydraulic enclosed wet multiple-disc (SAFR)

Engine:

  • – Cat. C11 6 cylinder, diesel
  • – Air-to-air aftercooler (ATAAC)

Fuel adapters:

  • – Fuel tank, single, standard adapter

Fuel priming aid

Heat shields

Precleaner, engine air intake

Torque converter with automatic lock up clutch

Transmission, automatic planetary power shift (4F/4R)

Transmission neutralizer

Optional

Brakes, full hydraulic enclosed wet multiple-disc (SAFR)

Engine:

  • – After-Treatment Options – DPF (Flow Thru)

Engine options:

  • – Engine, VR
  • – VR engine, Flow Thru Ready
  • – Engine, Tier 3

Fuel adapters:

  • – Fuel tank, dual, standard adapter
  • – Fuel tank, single, fast fill
  • – Fuel tank, dual, fast fill

Park brake switch engagement – push to apply/pull to apply

Radiator, high efficiency

Reversible steering

Optional

Command for Underground*

* Please consult with your regional commercial or technology representative prior to upgrading your machine to Command for Underground.

Remote control interface (excludes transmitter and receiver), includes warning lights (green)

  • – Cattron
  • – RCT

Optional

Brake release arrangements, includes steering release:

  • – Recovery hook
  • – Recovery bar

Buckets:

  • – Various sizes, dump (4.2 m3/5.5 yd3, 5.6 m3/7.3 yd3, 5.9 m3/7.7 yd3)
  • – Bolt-together (5.3 m3/6.9 yd3)
  • – Ejector (4.8 m3/6.3 yd3)
  • – Standard lip or bolt-on lip
  • – Cutting edge, bolt-on
  • – Cutting edge, Cat modular weld on
  • – Lip fully welded or tack welded
  • – Heel shrouds, ejector and dump buckets
  • – Mechanically Attached Wear Plate System (MAWPS)
  • – Wear bars, ejector and dump buckets
  • – Wear liner

Draw bar attachment, bolt-on

Fast Fill System:

  • – Coolant
  • – Engine oil
  • – Fuel
  • – Hydraulic oil
  • – Transmission oil

Fluids:

  • – Arctic fuel
  • – Arctic coolant

Guards, light and window

Lifting Group, Mine Transfer

Lubrication system:

  • – Centralized
  • – Automatic

Ride Control System

Service tools

Wear protection bars:

  • – Cab
  • – Hydraulic tank
  • – Radiator

Wheel chocks

Windows:

  • – Window, single pane
