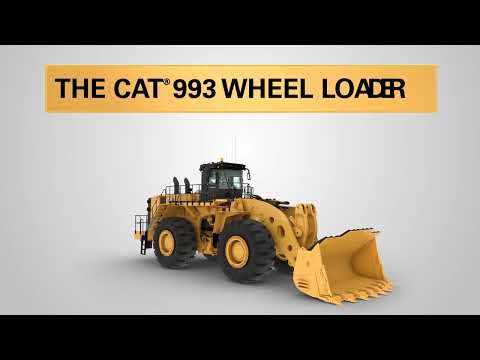

993 Wheel Loader

Engine ModelCat C32B

Bore5.7in

Displacement1959in³

EmissionsU.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent

Gross Power - SAE J19951039hp

Net Power - EEC 80/1269974hp

Net Power - ISO 143961024hp

Net Power - ISO 9249974hp

Net Power - SAE J1349964hp

Peak Torque - 1,250 rpm4034lb/ft

Rated Speed1800r/min

Stroke6.4in

Torque Rise33%

NoteStandard ambient cooling.

Operating Weight - Tier 4 Final*294687lb

Bucket Range12.2-23.7 m3 (16.0-31.0 yd3)

Articulation Angle43°

Cat Truck Match - Standard Lift777

Cat Truck Match - High Lift777, 785

Operating Weight - Tier 2 Equivalent*294687lb

Rated Payload - High Lift27.5t

Rated Payload - Standard Lift30t

Note*High lift, 50/65-51 (364-6315) tires, standard cooling, 13.8 m3 (18 yd3 ) bucket (496-9912).

Dump1.8s

Lower3.8s

Lower Float Down3.1s

Rack Back2.4s

Raise9.2s

Total Hydraulic Cycle Time17.2s

NoteHigh Lift configuration, calculated speeds.

Bore5.7in

Displacement1959in³

EmissionsU.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent

Engine ModelCat C32B

Gross Power - SAE J19951029hp

Net Power - EEC 80/1269960hp

Net Power - ISO 143961015hp

Net Power - ISO 9249960hp

Net Power - SAE J1349952hp

Peak Torque - 1,250 rpm4034ft-lb

Rated Speed1800r/min

Stroke6.4in

Torque Rise33%

NoteStandard ambient cooling.

Transmission TypeCat Planetary Power Shift

Forward - 14.2mile/h

Forward - 27.4mile/h

Forward - 312.7mile/h

Reverse - 14.7mile/h

Reverse - 28.1mile/h

Reverse - 313.9mile/h

Direct Drive - Forward 1Lock-up disabled

Direct Drive - Forward 28mile/h

Direct Drive - Forward 314.1mile/h

Direct Drive - Reverse 14.9mile/h

Direct Drive - Reverse 28.8mile/h

Direct Drive - Reverse 315.6mile/h

Note50/65-51 (364-6315) calculated speeds.

Cylinders - Lift/TiltDouble-acting

Lift Cylinder - Bore10.5in

Lift Cylinder - Stroke66.2in

Lift/Tilt System - CircuitPositive Flow Control

Lift/Tilt System - PumpVariable Piston

Maximum Flow at 1,650 rpm311gal/min

Relief Valve Setting - Lift/Tilt4200psi

Tilt Cylinder - Bore9.3in

Tilt Cylinder - Stroke40.9in

NoteHigh Lift configuration.

Standard

Engine, C32B

Brakes, oil-cooled, multi-disc, service/secondary

Driveline parking brake

Fuel Priming Pump (electric)

Ground level engine shutoff

Precleaner, engine air intake (above hood)

Automatic, ether starting aid

Electronic throttle lock

Planetary powershift, 3F/3R electronic control transmission

Rimpull Control System

Standard ICTC

Optional

ICTC with lock up clutch

Engine Brake

Standard

Case drain filters

VIMS download and Cat. Electronic

Technician service port in bumper

Axle ecology drain

Front walkway around cab

Ground-level fast-fill fuel system

Grouped hydraulic pressure ports

Guards, crankcase and power train

Drawbar hitch with pin

Linkage pins, maintenance free

Oil sampling valves

Product Link^™

Service center with ground level electrical and fluid connections

Sight gauges for steering, implement and

transmission oil

Transmission lockout, bumper

Grease lines

Optional

Automatic Autolube

Standard

Standard ambient package (recommended for site conditions that do not exceed 43°C [110° F])

Optional

High ambient package (recommended for site conditions that do not exceed 55° C [131°F])

Standard

150-amp alternator

Four 1400 CCA batteries

Deutsch terminal connectors

24V starting and charging system

Diagnostic connector starting and charging system

Electrical system, 24 volt

Electronic Service Center

Electronic Transmission Control

Lighting system, halogen (front and rear) lighting, access stairway

Starter receptacle for emergency start

Starter and transmission lockouts in bumper

Optional

Product Link (Cellular)

Product Link (Satellite)

Standard

Heated Seat

Optional

Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])

–50° C (–58° F) antifreeze

Heated Mirrors

120V or 240V coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])

Standard

Back-up alarm

Mirrors, rearview (externally mounted)

Seat, trainer with lap belt, 76 mm (3 in) wide

Seat belt, retractable, 76 mm (3 in) wide

Emergency platform egress

Implement lock switch

Stairway, left and right rear access

Steering and transmission lock lever, cab

Toe kicks

Optional

LED warning strobe

Object detection (radar)

Rear vision camera

Egress, powered rear access

Secondary Steering

Wheel Chocks

Standard

Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable-length seat cushion

Advisor Display, displays real time operating information, performs calibrations and customizes operator settings

Air conditioner

Air precleaner

Cab, sound suppressed and pressurized, separate external Rollover Protective Structure (ROPS)/Falling Object Protective Structure (FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 10-amp) and power port

Cigar lighter, ashtray

Coat hook

Dual lever lift and tilt function controls

Digital display on center console: – Gear – Ground speed – Machine hours

Heater, defroster

Horn, electric

Instrumentation, gauges: – Coolant temperature – Fuel level – Hydraulic oil temperature – Power train oil temperature – Tachometer

Light, cab, dome

Lunchbox, beverage and manual holders

Wet-Arm wipers/washers (front and rear): – Intermittent front and rear wipers

Bonded glass, tinted

Optional

Joystick lift and tilt function controls

AM/FM/CD/MP3 radio

Cab precleaner

Satellite Sirius radio with Bluetooth.

Sun screen

Rubber-mounted, high-impact resistant solar control glass (Complies with AS/NZS 2080)

Standard

Automatic bucket leveler

Automatic lift and lower bucket kickout

Positive Flow Control implement system

Load-sensing steering

Optional

ICTC with lock-up clutch

Standard

Standard lift (30 tons face)

Optional

High lift (27.5 tons face)

Optional

Cat Terrain ready

Optional

40.00x51 spare rim

Tires – 50/65R51

Tires – 50/65-51

Axle oscillation limit stop

Optional

Ride Control

Rear Roading Fenders

Optional

Sound-suppression package
