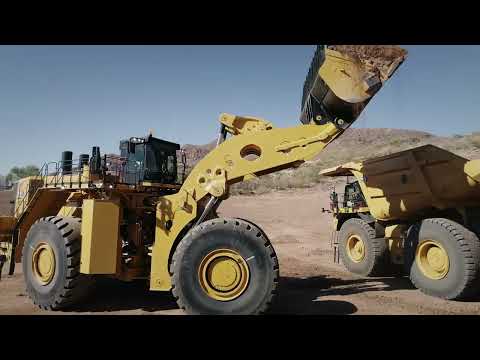

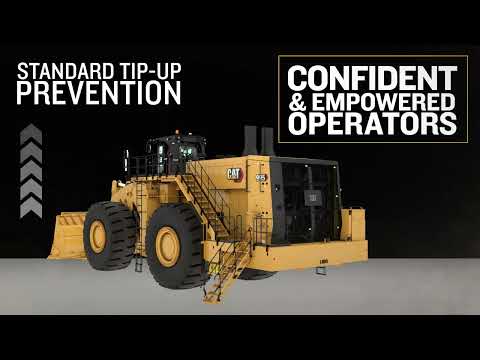

995 Wheel Loader

Engine ModelCat® 3516E

EmissionsU.S. EPA Tier 4 Final/EU Stage V or U.S. EPA Tier 1 equivalent

Engine Power - ISO 14396:20021847hp

Gross Power - SAE J1995:20141870hp

Net Power - SAE J1349 - Standard Ambient1739hp

Net Power - SAE J1349 - High Ambient1696hp

Bore6.7in

Stroke8.5in

Displacement4766in³

Peak Torque - 1,200 rpm - SAE J19958549lb/ft

Torque Rise39%

Note (1)The power ratings apply when tested under the reference conditions for the specified standard.

Note (2)The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner and muffler.

Note (3)The gross power advertised is with the fan at maximum speed.

Operating Weight - Standard543772lb

Bucket Capacity Range17.2-43.6 m3 (22.3-57 yd3)

Operating Weight - High Lift547675lb

Rated Payload - Standard Lift (Low to Moderate Digging Resistance)60ton (US)

Rated Payload - Standard Lift (Moderate to High Digging Resistance)50ton (US)

Rated Payload - High Lift (Low to Moderate Digging Resistance)55ton (US)

Rated Payload - High Lift (Moderate to High Digging Resistance)50ton (US)

Note*Please contact your local dealer to determine if your application is suitable for this increased rated payload.

Cat Truck Match - Standard785/789

Cat Truck Match - High Lift789/793/794

Transmission TypeCat Planetary Power Shift

Forward - 14.6mile/h

Forward - 28mile/h

Forward - 313.6mile/h

Reverse - 15mile/h

Reverse - 28.8mile/h

Reverse - 314.9mile/h

Direct Drive - Forward 1Lock-up disables

Direct Drive - Forward 28.7mile/h

Direct Drive - Forward 315.2mile/h

Direct Drive - Reverse 1Lock-up disables

Direct Drive - Reverse 29.6mile/h

Direct Drive - Reverse 316.8mile/h

NoteTravel speeds based on 58/85-57 tires.

Lift/Tilt System - CircuitPositive Flow Control

Lift/Tilt System - PumpVariable Displacement Piston

Maximum Flow at 1,700 rpm Engine Speed541gal/min

Relief Valve Setting - Lift/Tilt5004psi

Cylinders, Double Acting - Lift, Bore and Stroke370 × 1713 mm (14.6 × 67.4 in)

Cylinders, Double Acting - Tilt, Bore and Stroke310 × 1086 mm (12.2 × 42.8 in)

Pilot SystemOpen Loop and Pressure Reducing

Rack Back4.9s

Raise12.6s

Dump3.1s

Lower Float Down4.2s

Fuel Tank - Standard856gal (US)

Fuel Tank - With 24 hr Attachment1414gal (US)

Cooling System138gal (US)

Engine Crankcase76gal (US)

Transmission110gal (US)

Differential - Final Drives - Front220gal (US)

Differential - Final Drives - Rear200gal (US)

Hydraulic Tank - Implement and Hydraulic Fan270gal (US)

Hydraulic Tank - Steering and Braking100gal (US)

Oil Renewal System (ORS)*20gal (US)

Note*Not available on Tier 4 Final/Stage V machines. Not available in all regions.

FrontFixed

RearTrunnion

Oscillation Angle9°

Ambient Capability Hydraulically Driven Demand Fan - Standard109.4°F

Ambient Capability Hydraulically Driven Demand Fan - High (Tier 1 equivalent)131°F

Ambient Capability Hydraulically Driven Demand Fan - High (Tier 4 Final)127.4°F

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent74dB(A)

Machine Sound Level (ISO 6395:2008)119dB(A)

NoteThe declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was c

Operator Sound Level (ISO 6396:2008) - Tier 1/EU Stage I Equivalent73dB(A)

Machine Sound Level (ISO 6395:2008)117dB(A)

NoteThe declared sound levels listed above include the addition of both measurement uncertainty and uncertainty due to production variation. Typical measurement uncertainty for this type of machine is 2 dBA in accordance with "ISO 4871". The measurement was c

Steering System - CircuitPilot, Load Sensing

Steering System - PumpPiston, Variable Displacement

Total Steering Angle80 degrees

Steering Cycle Times - Low Idle7.6s

Steering Cycle Times - High Idle4.3s

B-Pin Height - Maximum Lift28.8ft

Clearance at Maximum Lift19.8ft

Dump Angle at Maximum Lift–50.0 degrees

Front Axle Centerline to Bucket Tip21.9ft

Ground to Bumper Clearance4.4ft

Ground to Center of Axles6ft

Ground to Lower Hitch Clearance2.9ft

Ground to Top of Exhaust Stacks23.2ft

Ground to Top of Hood18.6ft

Ground to Top of ROPS23.4ft

Maximum Overall Height - Bucket Raised39.3ft

Maximum Overall Length64.6ft

NoteAssumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.

Rack Angle at Maximum Lift59.5 degrees

Rack Back Angle - Carry47.7 degrees

Rack Back Angle - Ground Level39.7 degrees

Reach - Maximum Lift9.6ft

Rear Axle - Centerline to Bumper20.4ft

Tread Width14.1ft

Wheel Base22.3ft

Width - Over Tires - With Bulge18.8ft

B-Pin Height - Maximum Lift31.6ft

Clearance at Maximum Lift22.6ft

Dump Angle at Maximum Lift–50.0 degrees

Front Axle Centerline to Bucket Tip24.2ft

Ground to Bumper Clearance4.4ft

Ground to Center of Axles6ft

Ground to Lower Hitch Clearance2.9ft

Ground to Top of Exhaust Stacks23.2ft

Ground to Top of Hood18.6ft

Ground to Top of ROPS23.4ft

Maximum Overall Height - Bucket Raised42.1ft

Maximum Overall Length66.9ft

NoteAssumes loaded 58/85-57 tires, tires at a static loaded radius of 1830 mm (6 ft), 596-5330 26 m3 (34 yd3) bucket, 431-0064 HD tips.

Rack Angle at Maximum Lift59.4 degrees

Rack Back Angle - Carry53.5 degrees

Rack Back Angle - Ground Level45 degrees

Reach - Maximum Lift9.4ft

Rear Axle - Centerline to Bumper20.4ft

Tread Width14.1ft

Wheel Base22.3ft

Width - Over Tires - With Bulge18.8ft

BrakesISO 3450:2011

Standard

Engine, 3516E High Displacement (HD) Mechanical Electronic Unit Injector (MEUI^™-A), Air-to-Air Aftercooling (ATAAC) diesel, turbocharged/aftercooled

Engine prelube

Fuel priming pump (electric)

Ground-level engine shutoff

Engine air intake (above hood) precleaner

Aluminum Modular Radiator (AMR)

Automatic, ether starting aid

Electronic throttle lock

Impeller Clutch Torque Converter (ICTC) with Lock-Up Clutch and rimpull control system

Rimpull control system

Planetary powershift, 3F/3R electronic control transmission

Delayed engine shutdown

Oil-cooled, multi-disc, service brakes

Electro-hydraulic parking brake

Optional

Oil Renewal System (ORS)* (for increased time between oil changes)

Standard

Standard lift

Optional

High lift

Standard

Alternator

Batteries, low maintenance

10/15 amp, 24V to 12V converter

Disconnect switch to bumper

LED warning lights (pattern selectable)

LED lighting system (working lights, access and service platform lights, turn signals/hazard lights)

Emergency jump-start receptacle

Starter and transmission lockout in bumper

24V starting and charging system

Electric starters

Standard

Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment and two-way thigh support adjustment

Bonded glass, tinted

Trainer seat

Dual-lever lift and tilt function controls

Implement kickouts

Air conditioner

Cab pressure indicator

Graphical touchscreen information display conveys real-time operating information

Heater, defroster, auto temperature controls

Powered cab precleaner

Operator presence status

Starting/charging system malfunction

Electronic OMM

Operator controls help

Two USB charging ports

CB mounting, 12V/24V power and antenna

14-pin service port

12V power

Selectable application profiles

Entertainment radio mute

Push-To-Start (PTS)

Warning/indicator instrumentation

Keypad control with indicator lights

Dome light in cab

Lunchbox and beverage holders

Electro-hydraulic force feedback steering

Vital Information Management System (VIMS^™) with information display: external data port, cycle timer

Coat hook

Gauge instrumentation with configurable widgets:
– Status indicators

– Wheel rev counter

– Simplified payload

– Tire pressure monitoring system (optional)

– Bucket angle

– Coolant temperature

– Hydraulic oil temperature

– Fuel level

– Power train oil temperature

– Engine speed (tachometer)

– Transmission gear

– Ground speed

– Engine hour meter

Optional

Rubber-mounted, high-impact resistant solar control glass

Trainer seat with suspension

Joystick lift and tilt function controls

Bluetooth^®-enabled machine security

Sun screen, pull down (front and rear)

AM/FM/AUX radio

AM/FM/AUX/USB/BT/CD/SAT radio

Standard

Ground-access ladders

Rear-vision camera

Front frame access with steps

Front walkway around cab

Pump bay access ladders with T-handle and platform

Tie-offs on ROPS and radiator guards

Steering frame lock

Stairways on both sides of the machine

LED stairway and access lights

Toe kicks

Electric (field and shop) horns

Retractable seatbelt, 76 mm (3 in) wide

Trainer seat with lap belt, 76 mm (3 in) wide

Back-up alarm

Secondary steering

Optional

Powered ground-access stairs

Cat Detect (Rear Object Detection)

Wheel chocks

Standard

MineStar^™ Health ready

MineStar GUIDE ready

MineStar Edge ready

Optional

Cat Payload with Overload Prevention

New Autodig Components:
– Tire slip prevention

– Lift stall prevention

– Tire set

Operator coaching

Standard

12 hour (3240 L/856 gal)

Optional

24 hour (5350 L/1414 gal)

Standard

Standard ambient package (recommended for site conditions that do not exceed 43° C [110° F])

Optional

High ambient package (recommended for site conditions that do not exceed 53° C [127° F])

Standard

Service center light

Implement and cooling fan oil level indicator

Steering and brake oil level indicator

Window washer solvent level indicator

Transmission oil level indicator

DEF level indicator (if equipped)

Fuel level indicator

Engine oil level indicator

Engine coolant level indicator

Automatic lubrication system grease tank level indicator

DEF purge indicator lamp

Transmission lockout and LED

Starter lockout and LED

Heavy-duty battery disconnect switch

Stairway light switch

Service lighting switch (if equipped)

Fuel shutoff engine shutdown switch

Engine oil fast-fill port

Transmission oil fast-fill port

Steering and brake hydraulic oil fast-fill port

Steering and brake hydraulic oil drain port

Oil renewal system fast-fill port (if equipped)

Engine coolant fast-fill port

DEF fill port (HRC only)

Implement and cooling fan hydraulic oil fast-fill port

Implement and cooling hydraulic oil drain port

Automatic lubrication system grease tank fill port

24V jump-start receptacle

240V jacket water and engine oil heater plug (if equipped)

12V power port

VIMS key switch

14-pin machine data port

Standard

EH steering eliminates need for neutralizer adjustment

In-tank mounted cartridge-type case drain filters with in-line magnetic plugs on implement, cooling fan, brake and steering pumps

High-pressure screens on the output side of implement, cooling fan, brake and steering pumps

Pump efficiency monitoring

Automatic lubrication system greases the linkage, hitch, steering and axle trunnion bearings

Electronic pressure control of the automatic lubrication system eliminates pressure adjustment and monitors grease thickness for temperature compatibility

Rock guards on linkage grease lines

Cat O-ring face seal couplings

Lockable service access doors

Ecology drains for engine, radiator, hydraulic tank, steering and brake tank, brake cooling tank and axles

High-speed engine oil change system

Ground-level fast-fill fuel system

Transmission guard

Drawbar hitch with pin

Cat XT^™ hoses

Left-side service center

Oil sampling valves

Automatic Autolube filling shutoff valve

Telematics and Cat Electronic Technician service port in bumper

Air filter remaining useful life sensor

Premixed 50% concentration of extended-life coolant with freeze protection to –34° C (–29° F)

Rear access to cab and service platform

Load-sensing steering

Supplemental steering system

Vandalism protection caplocks

Cooling cleanout service package

VIMS download and Cat Electronic Technician service port in bumper

Service lights (engine bay, service center)

EH steering eliminates need for neutralizer adjustment

Optional

Product Link^™ satellite

Product Link cellular

Product Link (dual mode – satellite/cellular)

Additional service lights (pump bay, front frame and bumper)

Standard

On demand throttle, HP Plus, and Enhanced ECO Modes

Variable displacement implement pumps

Variable displacement load sensing steering

Variable displacement cooling fan pump

Torque converter lock-up clutch

Optional

Cold-weather cooling fan bypass (recommended for temperatures below –29° C [–20° F])

Heavy-duty starter (provides an additional electric starter motor and two additional batteries for a total of three starter motors and six batteries) (recommended for temperatures below 0° C [32° F])

240V engine oil and coolant heating elements (recommended in conditions from –18° C to –30° C [0° F to –22° F])

Fuel heater (heated by recirculation using engine heat and a heat exchanger) (recommended in conditions from –18° C to –30° C [0° F to –22° F])

Heated mirrors (recommended for below-freezing temperatures)

Optional

Rims – 1194 mm (47") (47 × 57); 152 mm (6") flange; For use with 58/85-57; 84PR L4 tires

Rims – 1194 mm (47") (47 × 57);127 mm (5") flange; For use with 60/80 R57; L5R XMine D2 SR tires

Tires – 58/85-57 84PR L4 (require 47" rims)

Optional

1194 mm (47") 152 mm (44 × 57) (6") flange

1194 mm (47") 127 mm (47 × 57) (5") flange

Optional

Sound-suppression package
